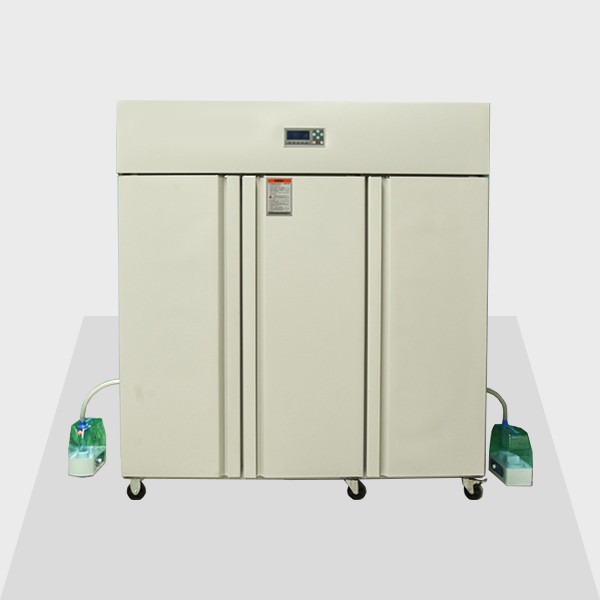

Low temperature LED overhead light source artificial climate incubator
Application:
It is widely used for plant growth and tissue culture, seed Germination, seedling raising, microbial culture test, rearing of insects and small animals, BOD determination of water quality monitoring, aging and service life test of medicinal materials, timber and building materials, etc. With the refrigerator, the temperature can be controlled from -10℃ to 50℃ with high precision, and the humidity range will be from 50% to 95%. The incubator with different type, from 160L to 1500L, so it can fulfill all the customers' requirement.
Parameters:
| Model number |
SYGL-
P160-B2
|
SYGL-
P250-B2
|
SYGL-
P300-B3
|
SYGL-
P400-B3
|
SYGL-
P500-B3
|
SYGL-
P800-B3
|
SYGL-
P1000-B3
|
SYGL-
P1200-B3
|
SYGL-
P1500-B3
|
|
| Volume L |
160L |
250L |
300L |
400L |
500L |
800L |
1000L |
1200L |
1500L |
|
| Standard pannel |
2Block |
3Block |
| Power supply |
AC220V 50HZ |
| Temperature control range |
-10-50℃ |
| Temperature resolution |
0.1℃ |
| Temperature fluctuation |
±1℃(The experimental conditions are no-load, ambient temperature 20 °C, humidity50%RH) |
| Humidity range |
50-95%RH(Temperature setting is above 10 degrees, humidity setting is valid) |
| Moisture control fluctuation |
±3%RH ～ ±7%RH |
| Illuminance(lux) |
15000LUX |
| Working Environment |
10～30°C |
| Internal material |
Mirror stainless steel |
| External material |
COLD-ROLLED STEEL PLATE spraying |
| Time setting |
0-99 hours, 59 minutes/continuous operation |
| consumed power |
982W |
1196W |
1218W |
1304W |
1480W |
2360W |
2360W |
2690W |
3978W |
|
| Studio size |
450*420
*850
|
540*520
*900
|
540*520
*1200
|
640*620
*1100
|
640*620
*1300
|
1200*620
*1050
|
1200*600
*1200
|
1300*620
*1300
|
1710*550
*1400
|
|
| Contour dimension |
550*580
*1560
|
640*680
*1640
|
640*680
*1790
|
740*780
*1700
|
740*780
*1900
|
1300*780
*1830
|
1300*780
*1830
|
1400*780
*1930
|
1810*690
*1970
|
|
Features:
1. The shell is sprayed and adopts integral sealing heat preservation.
2. The microcomputer full-automatic LCD controller is with 9 working program groups.
3. LCD controller with Standard Time display function, so that the user to grasp the experimental time more convenient and simple.
4. Light-emitting chip lamp is suitable for plant growth.
5. Automatic frost-free running mode combined with energy-free defrosting mode can effectively avoid large temperature fluctuations and affect the experimental results, and ensure the temperature stability of the equipment for a long time.
6. The refrigeration unit of the equipment adopts the brand compressor, uses the non-fluorine Environmental Protection Refrigerant; the intellectualized temperature adjustment way, will identify the environmental climate change automatically, will adjust the difference of refrigeration up and down, takes into account the accuracy of temperature control and the energy-saving performance of electricity consumption.
7. In order to achieve more stable experimental results, a specially designed air duct with horizontal and vertical circulation effect is adopted to ensure the uniformity of air flow in each layer of the sample.
8. The equipment is equipped with Air Inlet Control Valve, which can adjust the air circulation in and out of the box manually.
9. The control system has the functions of sound and light alarm, automatic interruption of operation due to exceeding the set high temperature range, and self-protection such as power failure and power recovery to protect the safety of samples and experimental environment.
